we have just completed another installation at Clifton Explore in York with the install of sound systems throughout various rooms, projector installation in the main hall and various TV display screens in meeting rooms.

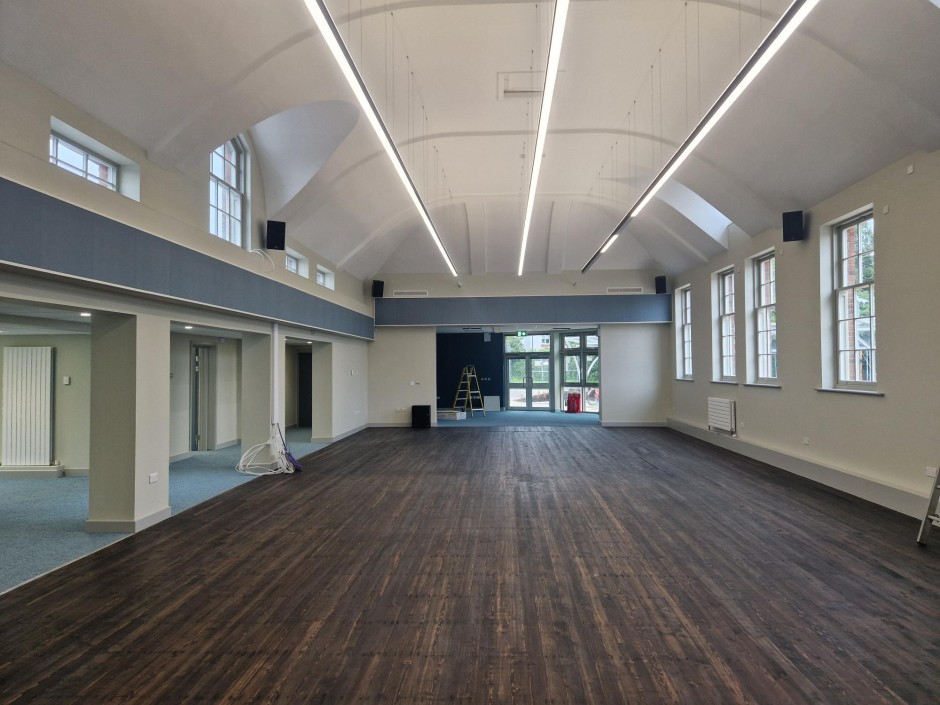

In the main hall we have installed four Optimal Audio Cuboid 8 speakers mounted at high level on powerdrive wall brackets along with two Optimal Audio Sub 10 bass speakers, along with two Cloud LM2 input connection plates with local Volume.
For the projector installation in the main hall we have installed an Epson 7000 Lumens WUXGA projector on a PVM short throw bracket projecting onto a Elite Saker Tensioned tab tensioned Electric Projection Screen 135″ diagonal, along with a Lindy HDMI over CAT6 wall mounted plate and a local HDMI input plate so they can present from the front or the back of the room.
In Activity Room one we have installed a Samsung 75” commercial TV display screen along with a Bose VB1 Video Conferencing Sound Bar with mics, speakers and in-built camera. For the sound system installation we have installed four Cloud CSC6 ceiling speakers along with a Cloud LM2 volume control plate and BT1 Bluetooth Plate.
In Activity Room two and three we have installed four Cloud CSC6 ceiling speakers along with a Cloud LM2 volume control plate and BT1 Bluetooth Plate along with a Samsung 55” commercial TV display screen with local HDMI connection.
In the Café area we have installed six Cloud CSC5 ceiling speakers in the ceiling grid along with a Cloud LM2 volume control plate and BT1 Bluetooth Plate and a Samsung Commercial 65” TV display screen which will be used for digital signage.
In the children’s library area we have installed a pair of Cloud CSC5 ceiling mounted speakers along with a Cloud LM2 volume control plate and BT1 Bluetooth Plate so that they can play music locally.
In the other six meeting rooms we have installed Samsung 55” commercial TV display screens with a local HDMI connection.
In the comms room upstairs we have installed a Cloud Z8 – 8 zone mixer, two Crown Amplifiers powering the Optimal Audio Sound System, a DBX two way Crossover, two Cloud VA4120 100 volt line amplifiers powering all the Cloud ceiling speakers.
